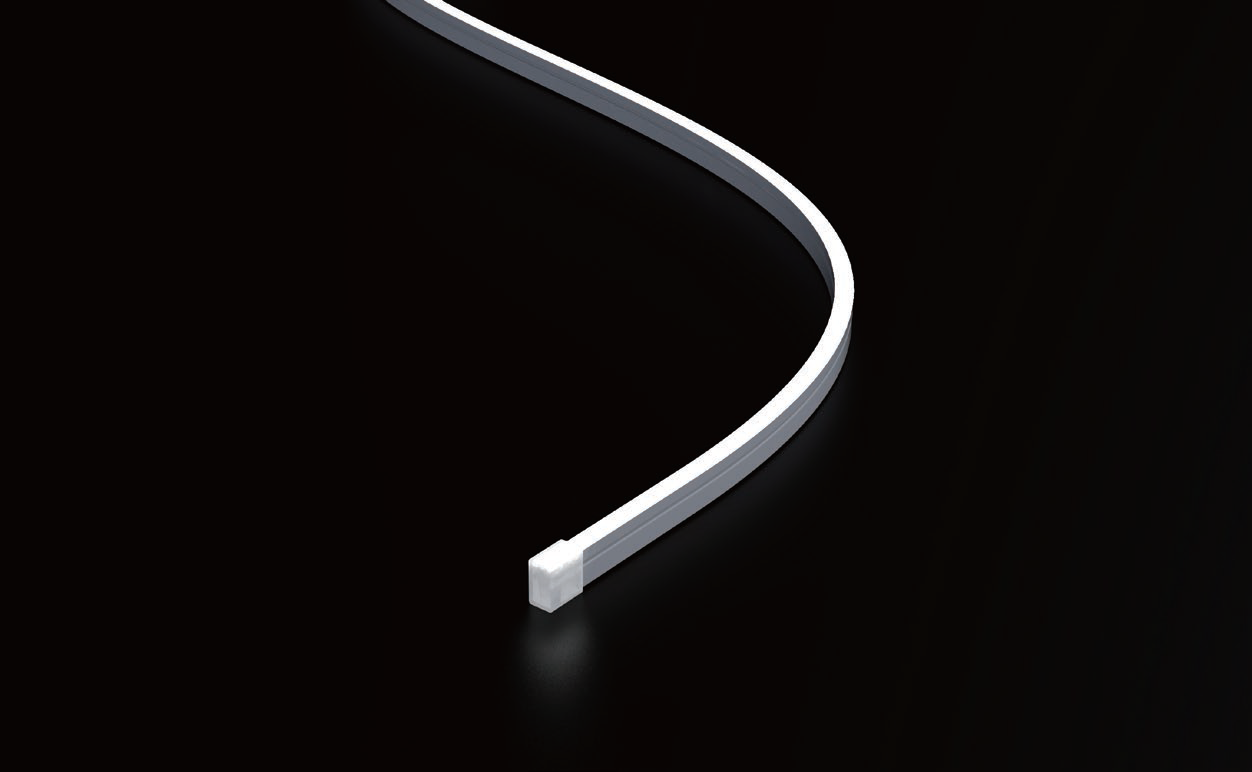

Neon Flex | Side Bending | 120*3014 LEDs | 12V 12W IP67 | 6mm(W) * 12mm(H) * 5000mm(L)

Description

LED QTY (pcs/m): 120
Voltage (VDC): 12
Power (Watt/m): 12
Beam Angle (°): 113°
Min Cuttable Length(MM): 25
Product Size L*W*H(mm): 5000*6*12
Meter/Reel: 5
Weight(lb): 1.5(±10%)
Standard Run Length(mm): 5000
Working Temperature: -20 ~ +60℃
Storage Temperature: -20 ~ +70℃

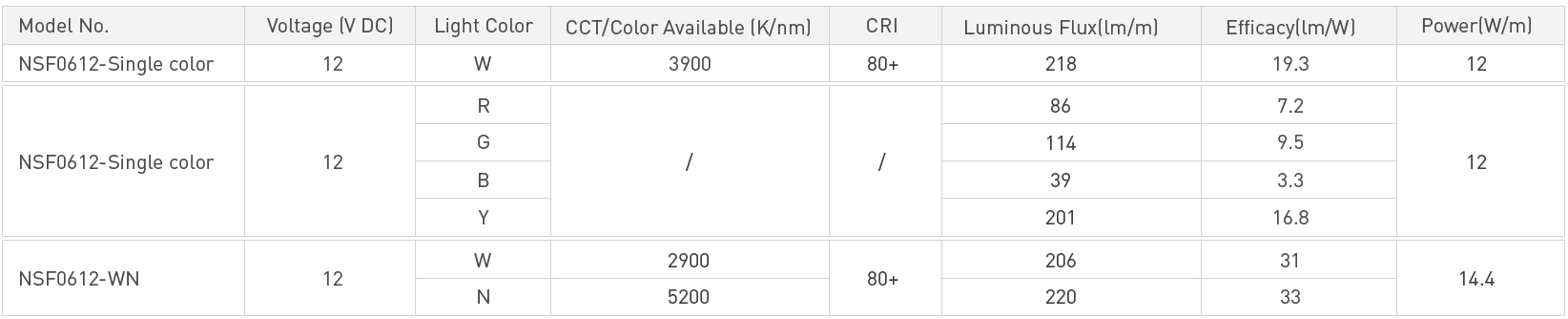

Optical & Electrical Parameters

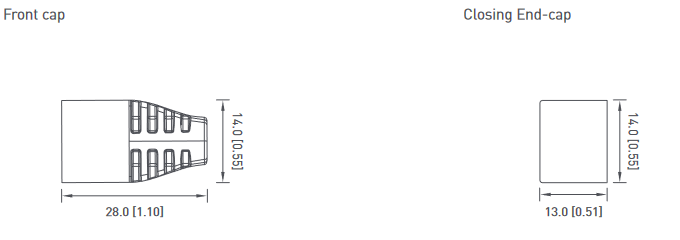

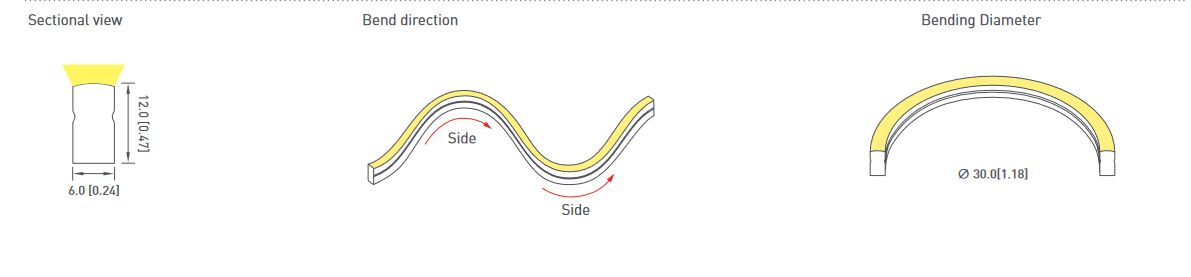

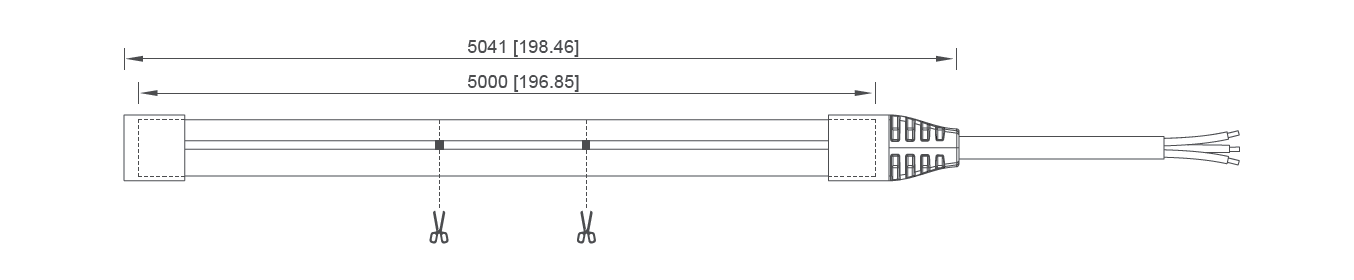

Profile drawing                         Length Unit : mm/inch

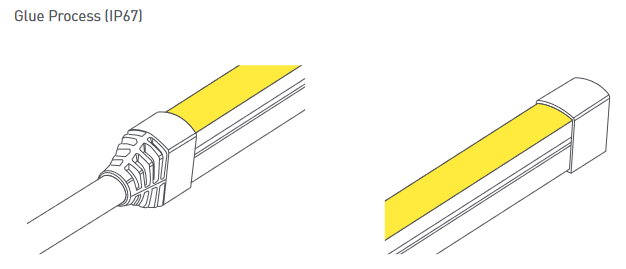

IP Process Technology

• After cutting, the IP protection of both glue processed and injection moulded product will drop to IP65, for injection moulded product, if customer self-processed injection moulded end cap for the cutted end, the IP protection will keep the IP67 level.
• Injection moulded end cap self-processing, need to prepare corresponding mold and molding equipment.

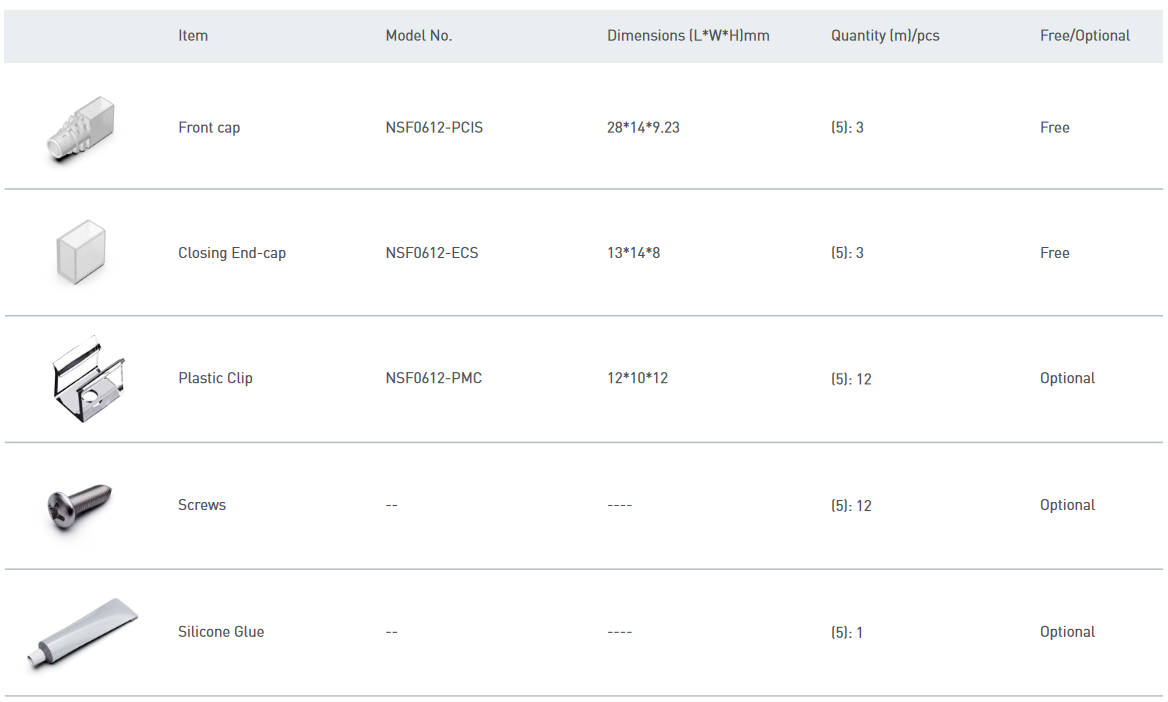

Product accessories
